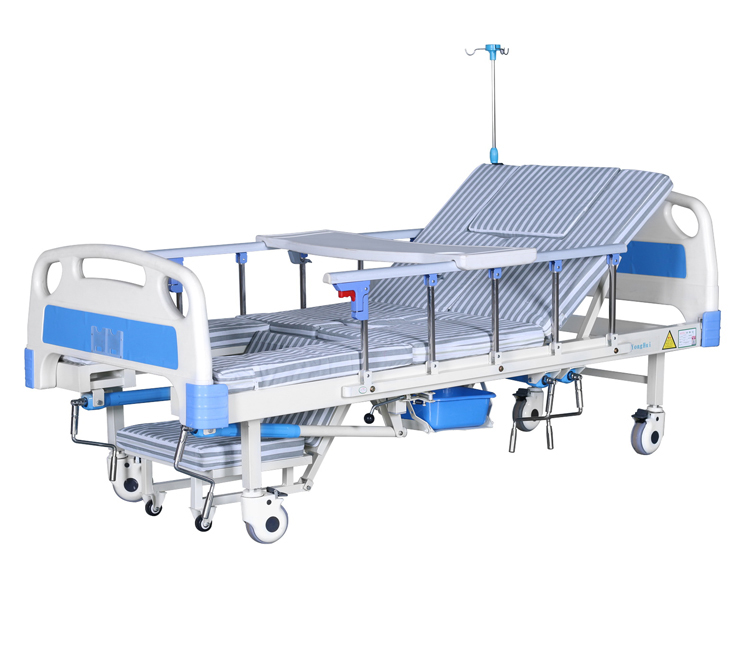

Function characteristics：

1、Overall dimension: (length * width * height) 2,080 * 960 * 550mm

2、Function：Turning over to left and right , back lifting, leg position lifting and falling, and potty conversion.

3、The raw material of the bed frame adopts 1.2mm thickness 40X60 square tube.

4、The raw material of the bed surface adopts 1.2mm thickness 15X30 square tube.

5、The body of the bed is made of punch forming of 2.75mm thick 3mm cold-roll steel sheet

6、Potty conversion uses manual quick wrench, which makes the potty can be opened within 1second,reducing

waiting time.

7、The rocker has a two-way over-rolling protection device, which can reduce the damage due toover-rolling and

prolong the service life

8、The silent universal casters, silent, wear-resisting, stable and reliable

9、The bed frame and bed surface are fully welded by the robot, the welding is reliable, smoothand finishing, sturdy

and durable

10、Weight:110kg Work load : 200kg
